Biodegradable Corn Starch Twin Screw Extruder Machine PLA Pellet Plastic Making Machine Featured Image
  • Biodegradable Corn Starch Twin Screw Extruder Machine PLA Pellet Plastic Making Machine
  • Biodegradable Corn Starch Twin Screw Extruder Machine PLA Pellet Plastic Making Machine

Biodegradable Corn Starch Twin Screw Extruder Machine PLA Pellet Plastic Making Machine

Short Description:

The barrel of Twin Screw Extruder can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements, in consideration of the machine's versatility in other general applications.


  • Application: Filler Masterbatches,Cable&wire compounding,PVC Compounding,Hot-melt adhesive,ect
  • Screw Design: Single & Double Screw
  • Screw L/D Ratio: 28-51mm
  • Montor Brand: SIEMENS Brand
  • Process Type: Compounding&kneading&Extruder&Pelletizing
  • Finished Products: Any plastic granules
  • Cutting System: Water strand pelletizing, Hot die face cutting, Water ring pelletizing, Under water pelletizing, Dry strands pelletizing, etc.
  • Motor power: 220-330kw
  • Automatic: Full automatic
  • Feeding System: Weightless Vacuum Feeding System
  • Certification: ISO9001,SGS,CE,ect
    • Download as PDF

    Product Detail

    Advantage Of Twin Screw Extruder

    Clamshell Barrel
    Clamshell Barrel

    The barrel of Twin Screw Extruder can be opened in minutes. This makes product changeover, maintenance and research fast and easy.

    CLAMSHELL BARREL 副本

    Description For Products

    PSHJ-50
    Model For Reference
    Application
    Layout
    Model For Reference
    Model
    PSHJ-20
    PSHJ-35
    PSHJ-50
    PSHJ-65
    PSHJ-75
    PSHJ-127
    Screw Diameter:
    MM
    21.7
    35.6
    50.5
    62.4
    71
    126
    Central Distance
    18
    30
    42
    52
    60
    102
    Length Diameter Ratio
    28-52
    28-52
    28-52
    28-52
    28-52
    28-52
    Main Motor Power
    4-5.5
    22-45
    75-110
    110-185
    160-280
    90-160
    Max.Screw Speed:
    RPM
    600
    600
    600
    600
    600
    600
    Output Torque per Shaft：N.m
    32-43
    175-358
    597-875
    875-1472
    1273-2228
    850-1528
    Reference Output: KG/HOUR
    5-20
    20-80
    80-200
    150-350
    300-600
    800-1500
    Model
    C-PSHJ-35
    C-PSHJ-50
    C-PSHJ-65
    C-PSHJ-75
    C-PSHJ-127
    Screw Diameter:
    MM
    35.6
    50.5
    62.4
    71
    126
    Central Distance
    30
    42
    52
    60
    102
    Length Diameter Ratio
    28-52
    28-52
    28-52
    28-52
    13-18
    Main Motor Power
    22-45
    75-132
    110-250
    160-355
    90-160
    Max.Screw Speed:
    RPM
    800
    800
    800
    800
    500
    Output Torque per Shaft：N.m
    131-269
    448-788
    657-1492
    955-2119
    850-1528
    Reference Output: KG/HOUR
    150-300
    200-500
    400-800
    500-100
    800-1500
    Application

    --Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, ect

    --Various engineering plastic reinforcement of glass fiber, flame-retartant pellets

    --Various antibacterial, insulated, toughening materials for specific uses

    --Light/biology degradable film materials, amylum degradable plastics and multi-functional anti-fog film materials, etc.

    --Specific material for automobiles and household appliance and cable materials, etc

    --Themoplastic elastomers, such as TPR, TPE, and SBS, etc

    --Regenerate pellets for PVC airproof pieces, thermo-soluble glue, etc

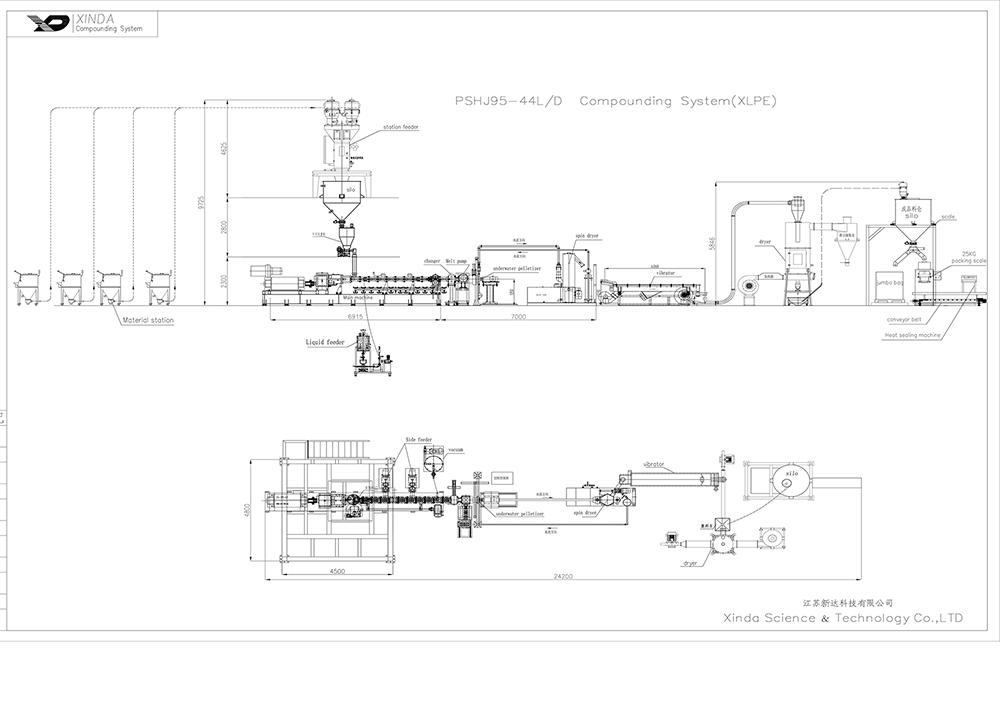

    Layout

    未标题-1 副本

    Factory Introduction

  • Previous:
  • Next:

    •

    Biodegradable Corn Starch Twin Screw Extruder Machine PLA Pellet Plastic Making Machine
    The barrel of  Twin Screw Extruder can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements, in consideration of the machine’s versatility in other general applications.

    Application of the Twin Screw Extruder:

    • Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, ect
    • Various engineering plastic reinforcement of glass fiber, flame-retartant pellets
    • Various antibacterial, insulated, toughening materials for specific uses
    • Light/biology degradable film materials, amylum degradable plastics and multi-functional anti-fog film materials, etc.
    • Specific material for automobiles and household appliance and cable materials, etc
    • Themoplastic elastomers, such as TPR, TPE, and SBS, etc
    • Regenerate pellets for PVC airproof pieces, thermo-soluble glue, etc
    Model
    PSHJ-20
    PSHJ-35
    PSHJ-50
    PSHJ-65
    PSHJ-75
    PSHJ-127
    Screw Diameter:
    MM
    21.7
    35.6
    50.5
    62.4
    71
    126
    Central Distance
    18
    30
    42
    52
    60
    102
    Length Diameter Ratio
    28-52
    28-52
    28-52
    28-52
    28-52
    28-52
    Main Motor Power
    4-5.5
    22-45
    75-110
    110-185
    160-280
    90-160
    Max.Screw Speed:
    RPM
    600
    600
    600
    600
    600
    600
    Output Torque per Shaft：N.m
    32-43
    175-358
    597-875
    875-1472
    1273-2228
    850-1528
    Reference Output: KG/HOUR
    5-20
    20-80
    80-200
    150-350
    300-600
    800-1500



    Max.Screw Speed:
    RPM
    800
    800
    800
    800
    500
    Model
    C-PSHJ-35
    C-PSHJ-50
    C-PSHJ-65
    C-PSHJ-75
    C-PSHJ-127
    Screw Diameter:
    MM
    35.6
    50.5
    62.4
    71
    126
    Central Distance
    30
    42
    52
    60
    102
    Length Diameter Ratio
    28-52
    28-52
    28-52
    28-52
    13-18
    Main Motor Power
    22-45
    75-132
    110-250
    160-355
    90-160
    Output Torque per Shaft：N.m
    131-269
    448-788
    657-1492
    955-2119
    850-1528
    Reference Output: KG/HOUR
    150-300
    200-500
    400-800
    500-100
    800-1500
